🎯 Mục tiêu Task 6: Thiết lập Amazon Elastic Container Registry (ECR) cho MLOps pipeline:
📥 Input từ các Task trước:
📦 Output:

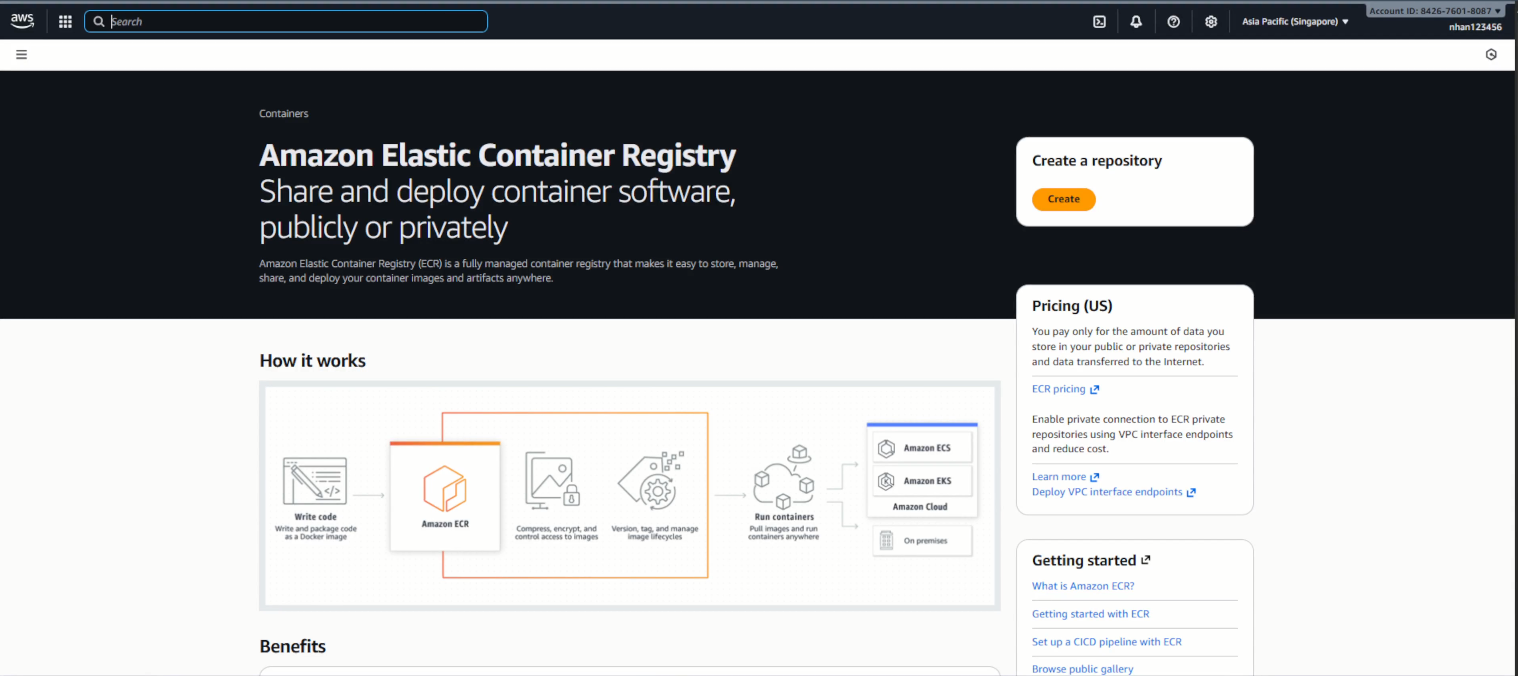

server/ code → FastAPI API serving predictions trong EKSAmazon ECR (Elastic Container Registry) là dịch vụ Docker container registry được quản lý hoàn toàn bởi AWS, tích hợp sâu với EKS và CI/CD pipeline. ECR cung cấp khả năng lưu trữ, quản lý và triển khai container images một cách an toàn cho MLOps workflow.

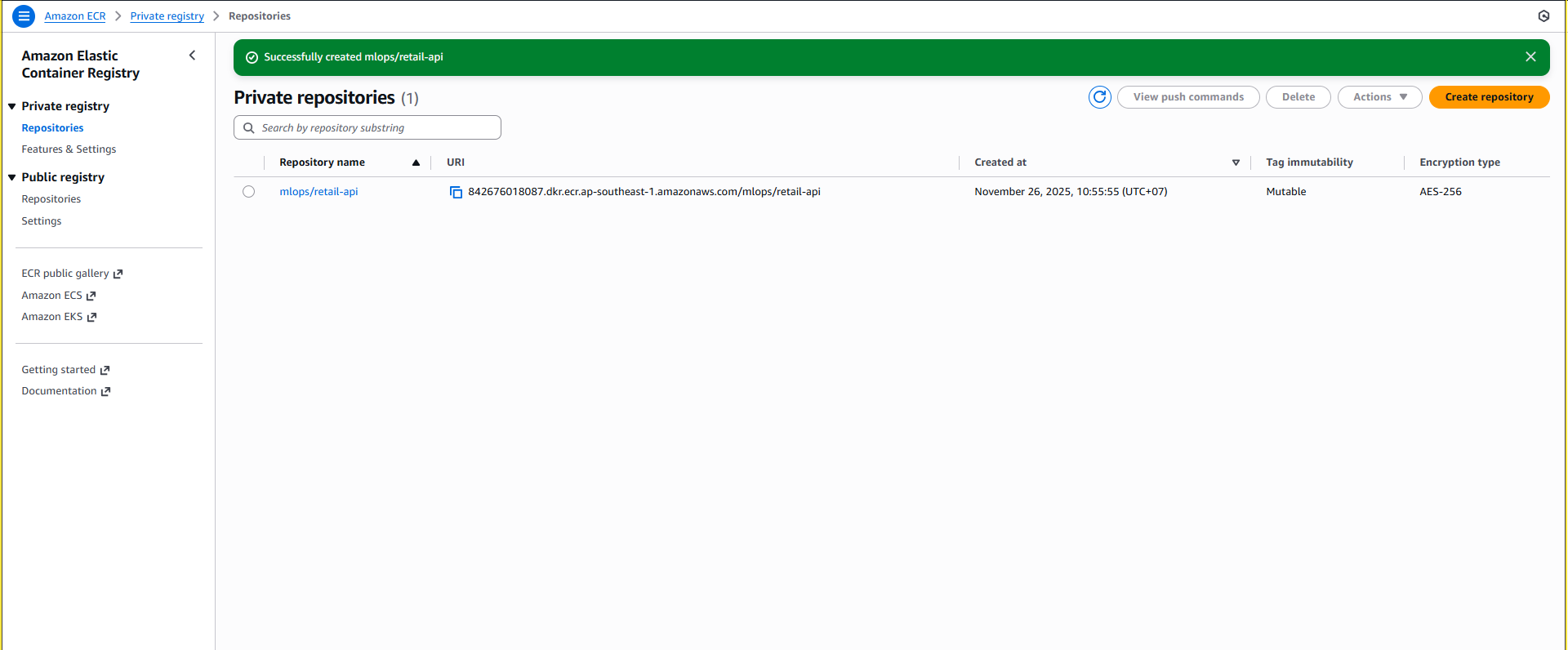

Repository Created Successfully:
Sau khi tạo repository, bạn sẽ thấy giao diện như hình dưới với thông tin:
mlops/retail-api<account-id>.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api
Repository Setup Complete:
API repository đã sẵn sàng cho containerized FastAPI application.
Repository Management Interface:
Trong giao diện quản lý repository, bạn có thể:

mlops/retail-api

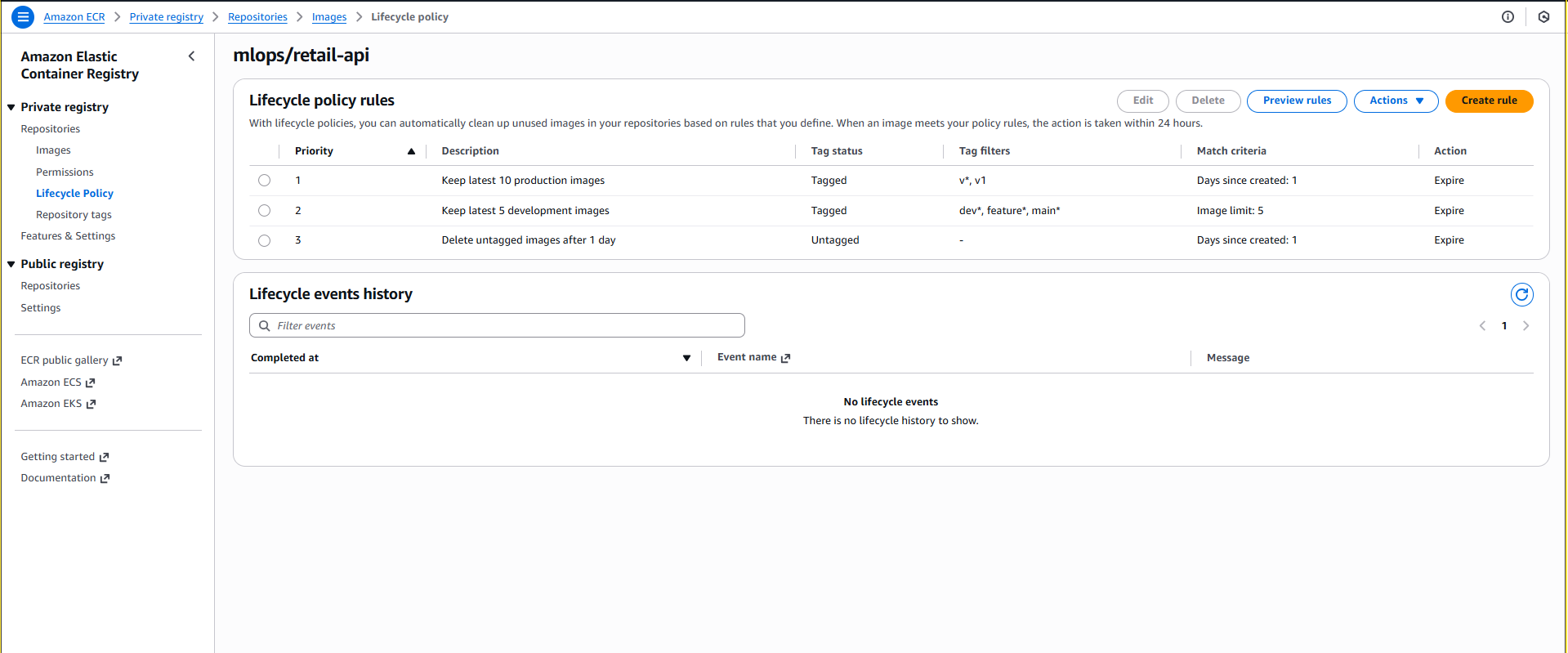

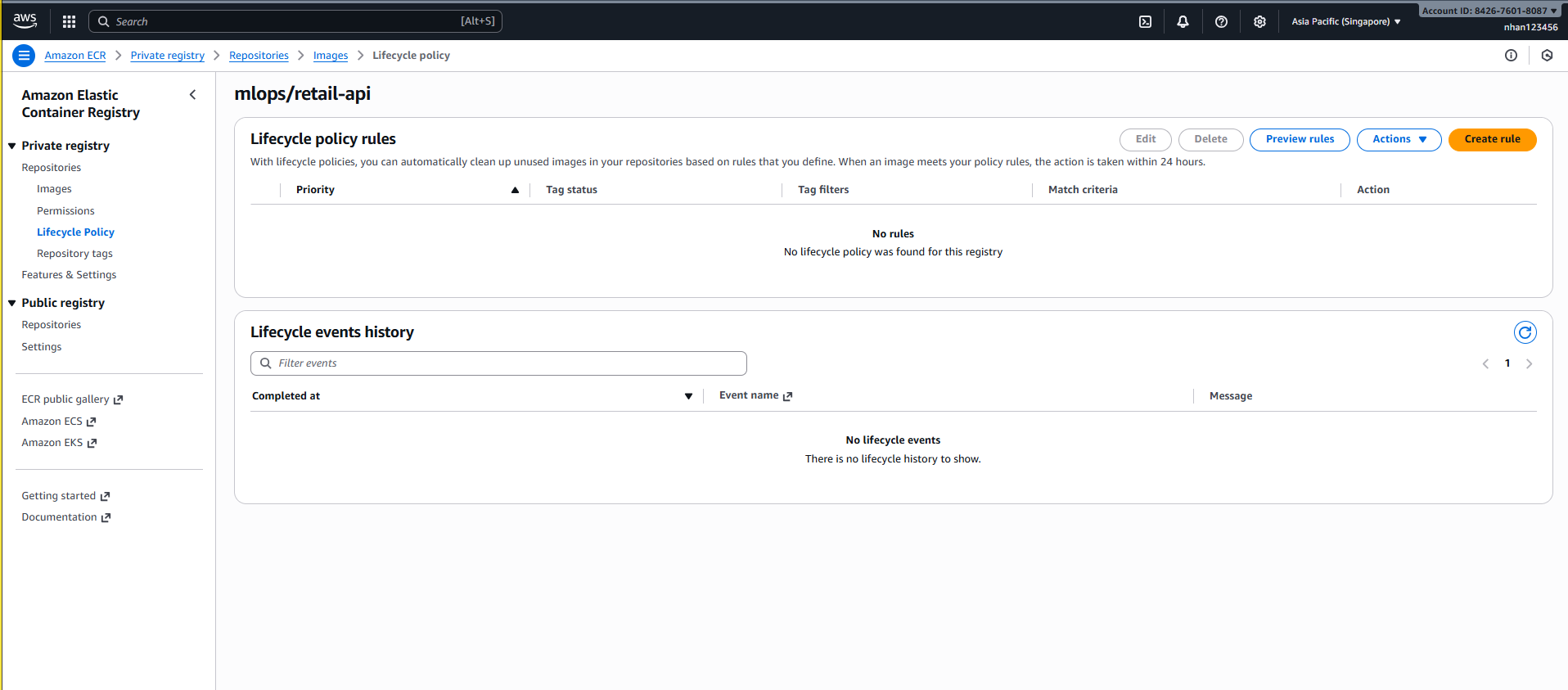

Configure API Lifecycle Rules:
Rule 1 - Keep Latest Production Images:
Rule priority: 1
Description: Keep latest 10 production images
Image status: Tagged (wildcard matching)
Image tag filters: v*
Match criteria:
- Count type: imageCountMoreThan
- Count number: 10
Action: expire
Rule 2 - Keep Latest Development Images:
Rule priority: 2
Description: Keep latest 5 development images
Image status: Tagged (wildcard matching)
Image tag filters: dev*, feature*, main*
Match criteria:
- Count type: imageCountMoreThan
- Count number: 5
Action: expire
Rule 3 - Remove Old Untagged Images:
Rule priority: 3
Description: Delete untagged images after 1 day
Image status: Untagged
Match criteria:
- Days since image created: 1
Action: expire
Training Repository Lifecycle Policy:

Check Scan Settings:
View Push Commands:


🎯 ECR Repositories Setup Complete!
Created Repository:
mlops/retail-api: FastAPI prediction service container<account-id>.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-apiTạo server/Dockerfile - Multi-stage build:
# Multi-stage build
FROM python:3.9-slim as builder
WORKDIR /app
COPY requirements.txt .
RUN pip install --user -r requirements.txt
# Production stage
FROM python:3.9-slim as production
WORKDIR /app
# Copy dependencies
COPY --from=builder /root/.local /root/.local
# Create non-root user
RUN useradd --create-home --shell /bin/bash apiuser
USER apiuser
# Copy application
COPY . .
# Expose port
EXPOSE 8000
# Health check
HEALTHCHECK --interval=30s --timeout=5s --start-period=10s --retries=3 \
CMD curl -f http://localhost:8000/health || exit 1
# Start application
CMD ["uvicorn", "main:app", "--host", "0.0.0.0", "--port", "8000"]
Tạo server/.dockerignore:
# Development files
.git
.gitignore
__pycache__/
*.pyc
.env
*.log
# Editor files
.idea/
.vscode/
# Large files (downloaded at runtime)
*.joblib
*.pkl
model/
# Navigate to server directory
cd retail-price-sensitivity-prediction/server

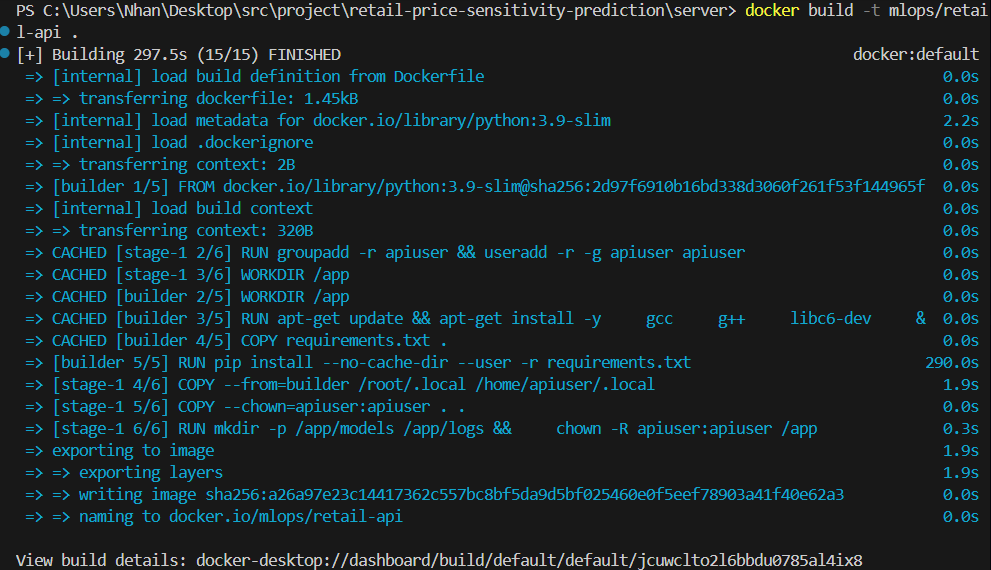

# Build Docker image
docker build -t mlops/retail-api:latest .
# Test locally
docker run -d --name test -p 8000:8000 mlops/retail-api:latest
curl http://localhost:8000/health
docker stop test && docker rm test
Trong ECR Console:

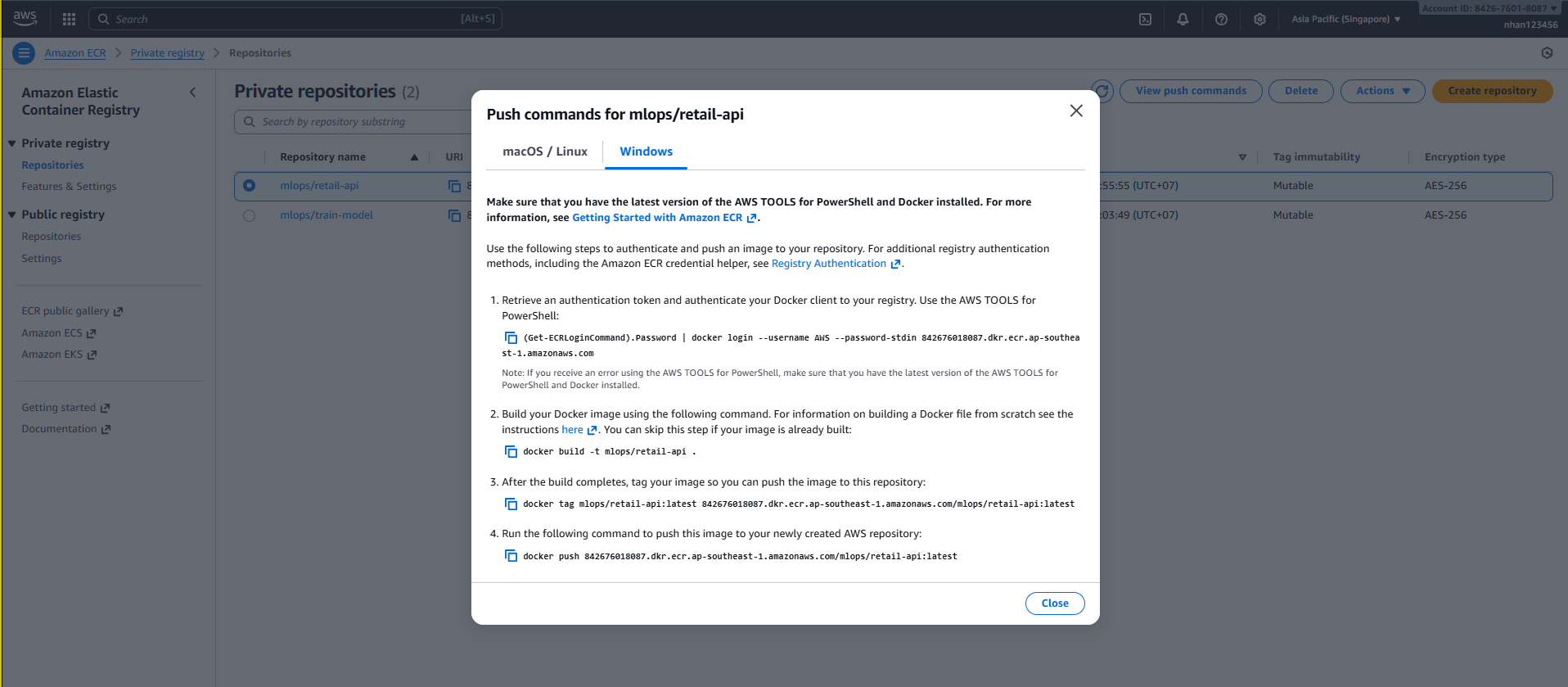

mlops/retail-apiCác lệnh push commands sẽ như (Windows PowerShell):
# 1. Retrieve an authentication token and authenticate Docker client
(Get-ECRLoginCommand).Password | docker login --username AWS --password-stdin 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com
# 2. Build your Docker image
docker build -t mlops/retail-api .
# 3. Tag your image
docker tag mlops/retail-api:latest 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest

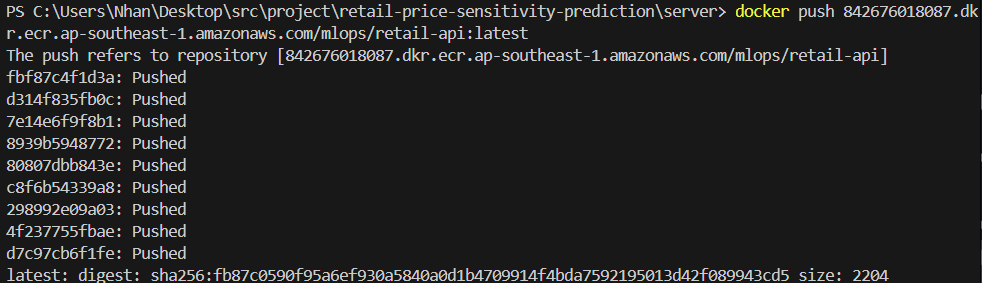

# 4. Push image to ECR
docker push 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest

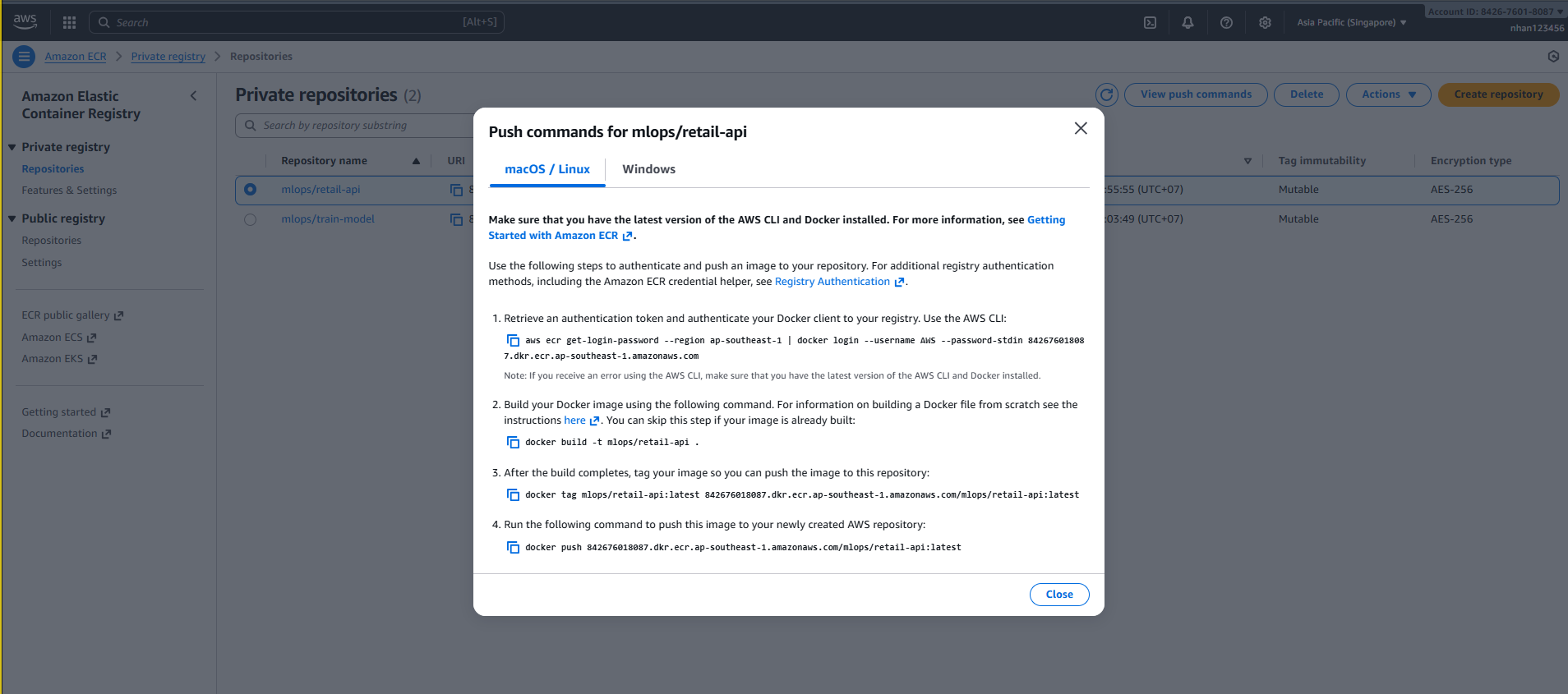

Hoặc sử dụng AWS CLI:
# 1. Retrieve an authentication token and authenticate Docker client
aws ecr get-login-password --region ap-southeast-1 | docker login --username AWS --password-stdin 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com
# 2. Build your Docker image
docker build -t mlops/retail-api .
# 3. Tag your image
docker tag mlops/retail-api:latest 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest
# 4. Push image to ECR
docker push 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest

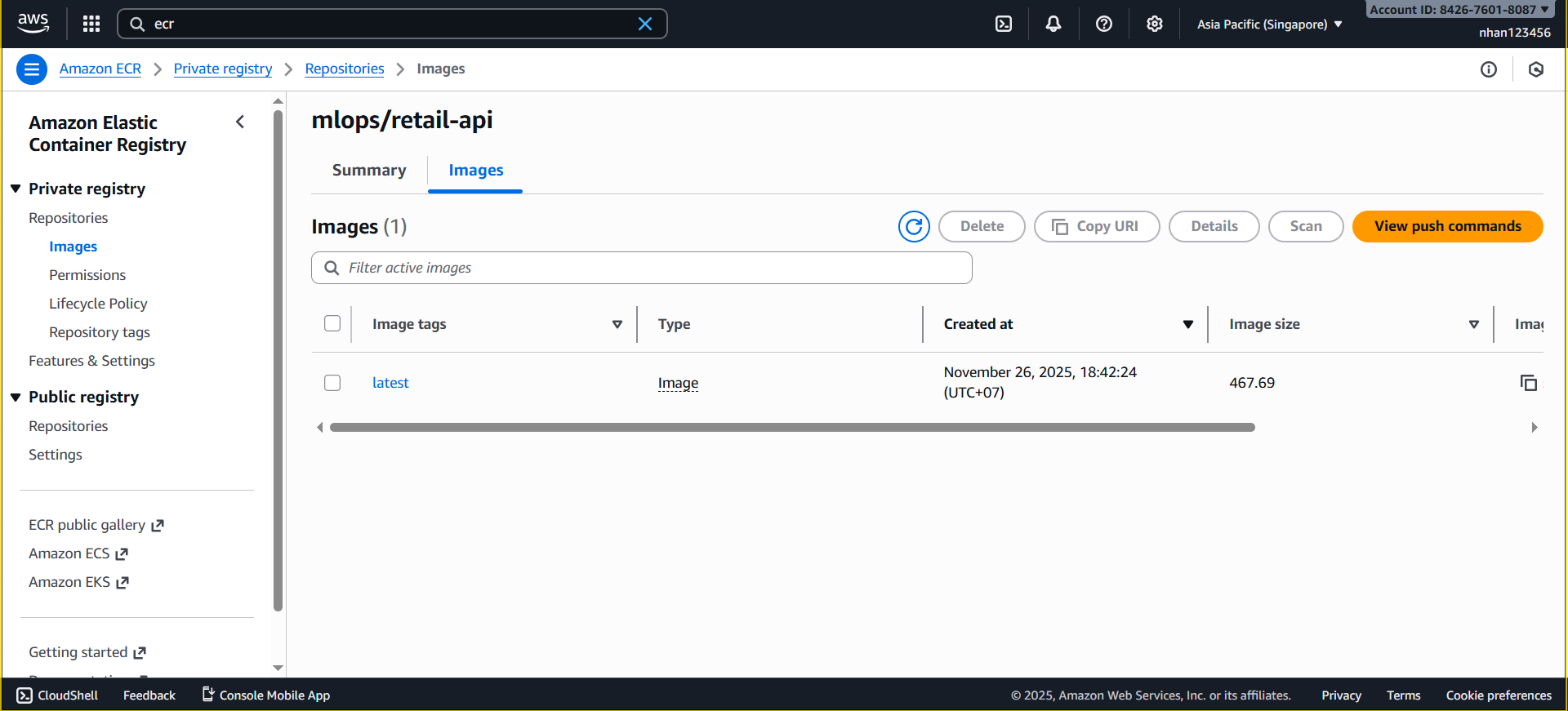

Kiểm tra trong AWS Console:
Navigate to ECR Console:
mlops/retail-apiExpected Result:
latest xuất hiện trong danh sách
Kiểm tra bằng CLI:


Kiểm tra bằng console:

Environment Variables:
# Basic configuration
AWS_DEFAULT_REGION=ap-southeast-1
MODEL_BUCKET=mlops-retail-forecast-models
LOG_LEVEL=INFO
PORT=8000

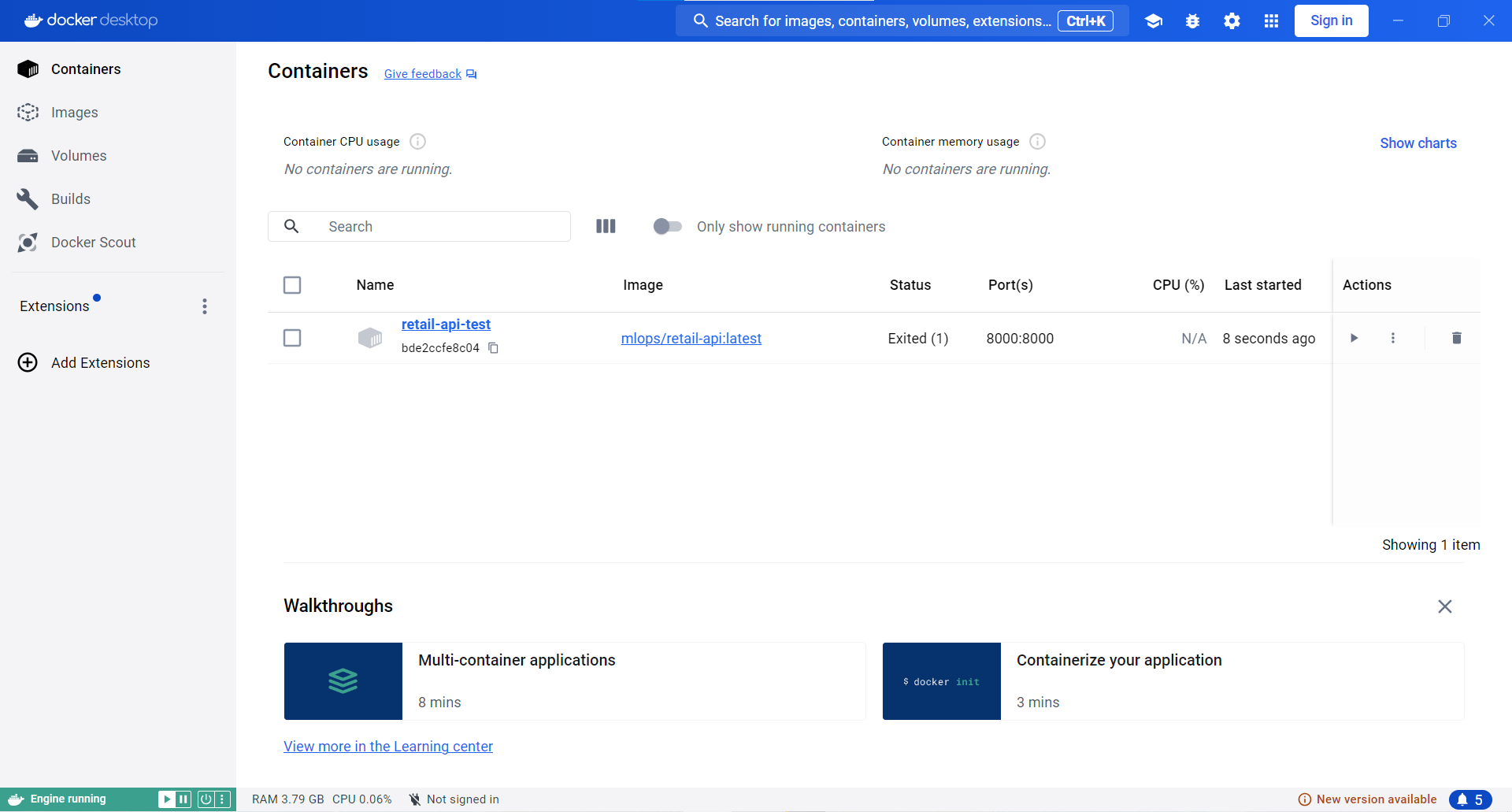

Test Docker Image Locally:
# Test API container locally
docker run -d \
--name retail-api-test \
-p 8000:8000 \
-e AWS_DEFAULT_REGION=ap-southeast-1 \
-e MODEL_BUCKET=mlops-retail-prediction-dev-842676018087 \
842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest
# Test health endpoint
curl http://localhost:8000/health
# Test API documentation
open http://localhost:8000/docs
# Clean up
docker stop retail-api-test && docker rm retail-api-test

Hoàn thành! 🎉
ECR registry đã được thiết lập và tích hợp với EKS cluster mlops-retail-cluster. Docker image của retail API đã sẵn sàng để deploy trên Kubernetes trong Task 10.
✅ ECR Repository - mlops/retail-api repository
✅ Container Image - FastAPI prediction service
✅ Cost Optimization - Lifecycle policies, multi-stage builds, ~$0.15/month
🎯 Task 6 Complete - ECR Registry + API Containerization!
✅ ECR Setup: Repository với lifecycle policies & image scanning
✅ Dockerfile: Multi-stage build, non-root user, health checks
✅ Build & Push: Local build → ECR push workflow
✅ Testing: Container verification & API validation
✅ Ready: Sẵn sàng cho EKS deployment trong Task 7
🚀 Next Steps:
� Production Benchmarks Achieved:
# Liệt kê images trong repository
aws ecr describe-images --repository-name mlops/retail-api --region ap-southeast-1 --query 'imageDetails[*].[imageDigest,imageTags[0],imagePushedAt]' --output table
# Xóa specific image tag
aws ecr batch-delete-image \
--repository-name mlops/retail-api \
--image-ids imageTag=latest \
--region ap-southeast-1
# Xóa tất cả images trong repository
aws ecr batch-delete-image \
--repository-name mlops/retail-api \
--image-ids "$(aws ecr describe-images --repository-name mlops/retail-api --region ap-southeast-1 --query 'imageDetails[*].{imageDigest:imageDigest}' --output json)" \
--region ap-southeast-1
# Xóa repository (phải trống trước)
aws ecr delete-repository --repository-name mlops/retail-api --region ap-southeast-1 --force
# Verify repository đã bị xóa
aws ecr describe-repositories --region ap-southeast-1 --query 'repositories[?repositoryName==`mlops/retail-api`]'
# Xóa lifecycle policy (tự động xóa khi xóa repository)
aws ecr delete-lifecycle-policy --repository-name mlops/retail-api --region ap-southeast-1
# List remaining repositories
aws ecr describe-repositories --region ap-southeast-1 --query 'repositories[*].[repositoryName,repositoryUri]' --output table
# Remove local Docker images
docker rmi mlops/retail-api:latest
docker rmi 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/mlops/retail-api:latest
# Clean up Docker build cache
docker system prune -f
# Remove unused images
docker image prune -a -f
#!/bin/bash
# ecr-cleanup.sh
REPOSITORY_NAME="mlops/retail-api"
REGION="ap-southeast-1"
echo "🧹 Cleaning up ECR repository: $REPOSITORY_NAME..."
# 1. Delete all images
echo "Deleting all images..."
IMAGE_IDS=$(aws ecr describe-images --repository-name $REPOSITORY_NAME --region $REGION --query 'imageDetails[*].{imageDigest:imageDigest}' --output json)
if [ "$IMAGE_IDS" != "[]" ]; then
aws ecr batch-delete-image \
--repository-name $REPOSITORY_NAME \
--image-ids "$IMAGE_IDS" \
--region $REGION
echo "Images deleted"
else
echo "No images to delete"
fi
# 2. Delete repository
echo "Deleting repository..."
aws ecr delete-repository \
--repository-name $REPOSITORY_NAME \
--region $REGION \
--force
# 3. Clean up local Docker
echo "Cleaning up local Docker images..."
docker rmi mlops/retail-api:latest 2>/dev/null || true
docker rmi 842676018087.dkr.ecr.ap-southeast-1.amazonaws.com/$REPOSITORY_NAME:latest 2>/dev/null || true
echo "✅ ECR cleanup completed"
| Storage Type | Giá (USD/GB/tháng) | Ghi chú |
|---|---|---|
| ECR Storage | $0.10 | Compressed image size |
| Free Tier | 500MB free | First 12 months |
| Data Transfer IN | Free | Push images to ECR |
| Data Transfer OUT | $0.12/GB | Pull từ Internet |
| Data Transfer VPC | Free | Pull qua VPC Endpoints |
| Scan Type | Giá (USD) | Ghi chú |
|---|---|---|
| Basic Scanning | Free | CVE database scanning |
| Enhanced Scanning | $0.09/image/month | Inspector integration |
| OS Package Scanning | Free | Basic vulnerability detection |
| Language Package Scanning | $0.09/image/month | Enhanced scanning only |
Container Images:
Monthly Costs:
| Component | Size | Price | Monthly Cost |
|---|---|---|---|
| ECR Storage | 0.5GB | $0.10/GB | $0.05 |
| Basic Scanning | 1 image | Free | $0.00 |
| VPC Endpoint Transfer | ~1GB/month | Free | $0.00 |
| Total | $0.05 |
ECR vs Docker Hub:
| Feature | ECR | Docker Hub | Winner |
|---|---|---|---|
| Storage (500MB) | $0.05/month | Free (public) | Docker Hub |
| Private repos | ✅ Native | $5/month | ECR |
| AWS Integration | ✅ Native | Manual setup | ECR |
| VPC Endpoints | ✅ Free transfer | ❌ Internet only | ECR |
| IAM Integration | ✅ Native | ❌ Token-based | ECR |
| Vulnerability Scanning | ✅ Built-in | ❌ Extra cost | ECR |
ECR Pull Scenarios:
| Pull Location | Cost | Use Case |
|---|---|---|
| Same Region (VPC) | Free | EKS production |
| Same Region (Internet) | $0.12/GB | CI/CD outside AWS |
| Cross Region | $0.12/GB + transfer | Multi-region deployment |
| Internet (outside AWS) | $0.12/GB | Local development |
Without Lifecycle Policies:
With Lifecycle Policies (Task 6):
Storage Optimization:
# Multi-stage builds giảm image size
FROM node:16 as builder
# ... build steps
FROM node:16-alpine as production # Smaller base image
COPY --from=builder /app/dist ./dist
Registry Management:
# Automated cleanup with lifecycle policies
aws ecr put-lifecycle-policy \
--repository-name mlops/retail-api \
--lifecycle-policy-text file://lifecycle-policy.json
Free Tier Usage:
💰 Cost Summary cho Task 6:
Next Step: Task 7: EKS Cluster Setup
